HEINRICH

Airport Terminal Public Address and Voice Alarm Systems

HEINRICH is a global manufacturer of public address and audio systems for applications across the transport sector, including airports.

Marshall Avenue Worthing BN14 0ES & A -62 1st floor ,
DDA shades Okhla Industrial Area phase 2 ,
New Delhi 110020,
India

Marshall Avenue Worthing BN14 0ES & A -62 1st floor ,
DDA shades Okhla Industrial Area phase 2 ,
New Delhi 110020,
India



HEINRICH is a global manufacturer of public address and audio systems for applications across the transport sector, including airports.

The company has extensive experience working in media, safety, energy, and audio fields, providing complete solutions for public address voice alarm systems (PAVAS), audio-video, closed-circuit television (CCTV), emergency lighting and loudspeakers.

HEINRICH’s voice alarm controller (VAC) airport solution is a stable solution that offers 100% redundancy of the main controller for large installations. The DVA series is a user-friendly system, which is suitable for small airport installations.

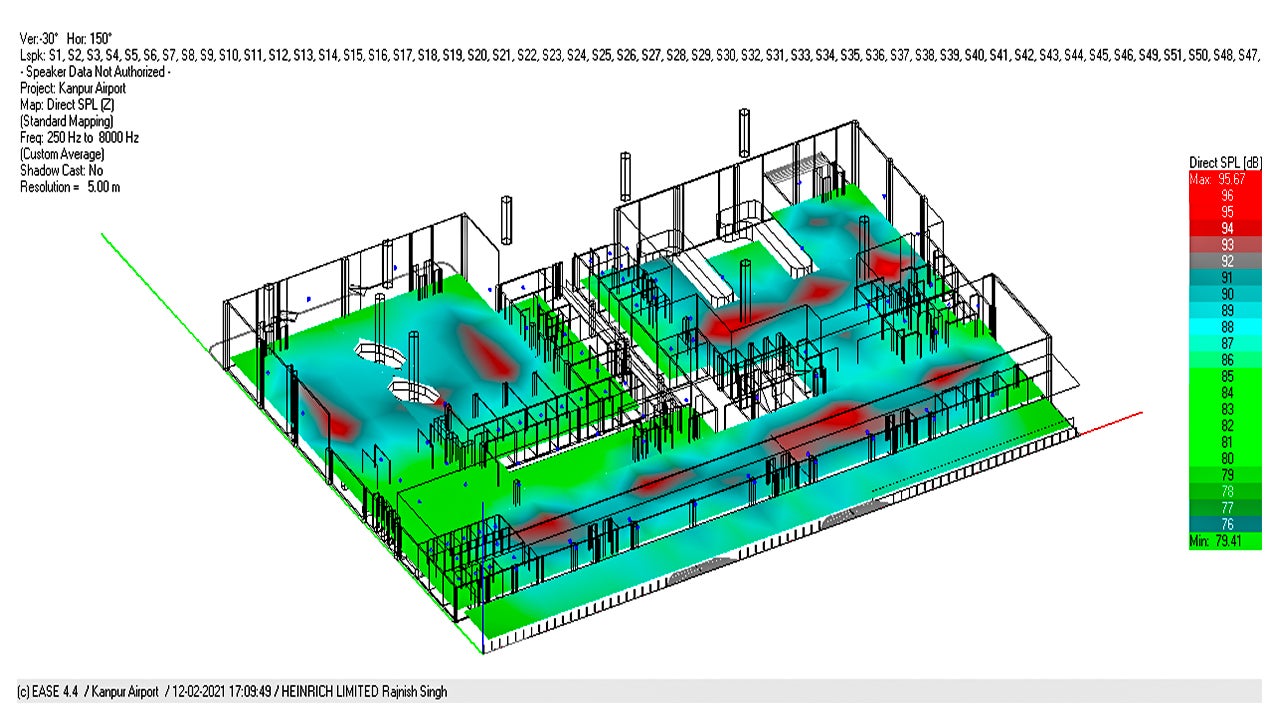

Our engineers prepare acoustic simulations for each system using EASE software, which can accurately depict the acoustics of a high-reverberation area such as terminal buildings with glass, gloss or metal structures.

Public address and voice alarm systems for airports

HEINRICH offers an extensive range of loudspeakers suitable for departure, arrival, security, boarding and airside areas of the airport.

The VAC public address and CCM8 amplifier changeover offer 100% redundancy with integration with other services such as the flight information display system (FIDS), fire and emergency systems.

The PMC8 keypad for the PMC8 keyboard extension provides a network and touchscreen microphone for an increased display and control of district / group, with up to seven MIC extension units.

The PMC8-TM is used for remote operation of the VAC system, including the selection of system voice information and zone paging. This includes support system zones / group selection, zone monitoring, volume adjustment and status display. It features a 7in touchscreen.

Amplifiers for airport terminal buildings

The DPA range digital class-D power amplifier is one mountable rack unit with minimal power consumption and higher efficiency. It saves installation rack space and generates less heat for an extended lifespan.

The range includes:

  • Single Channel: 120W, 240W, 350W, 500W
  • Dual-Channel: 120W, 240W, 500W
  • Four-Channel: 120W, 240W, 500W

HEINRICH’s software can integrate with air traffic control (ATC) and FIDS to provide real-time announcements. It can also be customised to display paid advertisements.

We have also developed advanced technology based on internet protocol (IP), wall-mount audio systems, patent loudspeaker technology among others.

Airport terminal loudspeakers and digital line array

HEINRICH loudspeakers are EN-54 approved with an array of available sizes from 3in to 20in.

The range features:

  • Ceiling loudspeakers CMS series: 2W, 6W, 8W, 10W, 12W, 15W, 20W, 25W, 30W, 40W, 60W and 80W
  • Wall-mounted loudspeaker WS series: 6W, 8W, 10W, 12W, 15W, 20W, 30W, 40W, 60W, 80W, 120W, 150W
  • Column loudspeaker: 10W, 20W, 30W, 40W
  • Horn loudspeaker: 10W, 15W, 20W, 30W, 60W and 200W
  • Explosion-proof loudspeaker: 15W, 30W, 60W
  • Pendent loudspeaker: 10W, 20W
  • Garden loudspeaker: 10W, 15W, 20W, 25W, 30W, 45W, 60W and 80W
  • Digital active line array speaker: 1m to 10m

About HEINRICH

As an industry leader, HEINRICH aims to provide our customers with high-quality acoustic and PAVAS solutions that are safe and easy-to-use with EN-54 certification.

Our experienced research and development (R&D) and customer and technical support teams ensure we implement and respond promptly to demands within various vertical markets.
