Amatec specialises in the design and manufacture of aviation fuel handling systems.

Fuel handling solutions for the aviation industry

Amatec’s products range from bulk fuel installations for rapid deployment, including temporary and permanent solutions for JET A-1 and AVGAS.

The systems include collapsible, containerised, underground, above ground and skid-mounted solutions for fuel storage, transfer and aircraft refuelling.

Amatec’s depot facilities and fuelling equipment comply with the latest Joint Inspectio Group (JIG) 4 standards and recommended Energy Institure (EI) practices. The company’s systems are integrated with high-quality commercial products meeting specific international standards.

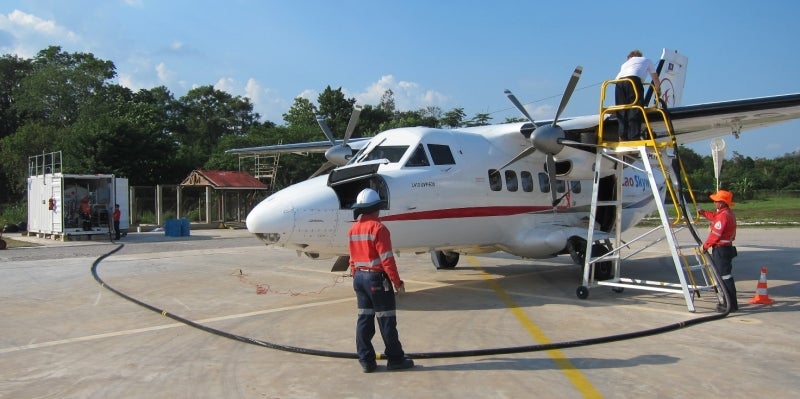

CRS: Containerised Refuelling Systems available in 20ft and 40ft ISO container including storage tank, unloading pump, filtration, metering, sampling, overwing and underwing refuelling systems.

AST: Above ground storage tank, single and/or double wall type, capacity from 3’000l to 100’000 l, completed with floating suction, overfill prevention, leak detection, gauging system, and access stairs-walkway.

LUS: Skid mounted loading – unloading – refueling systems, flow rates from 200l/min to 1’500l/min, including dedicated lines, Test Rig, sampling facilities.

ARC: Aircraft refueling cabinet for small airport, offshore application, flow rates from 100l/min to 800l/min, overwing – underwing operations.

AFT: Trailer mounted aviation fuel filtration – transfer – refueling system, diesel engine operated.

PRP: Portable refueling pump, diesel engine or electrical operated, flow rates from 50/min to 200l/min

Amatec is experienced in the design, manufacture and supply of equipment, in addition to logistic support. The company also provides personnel to commission, train and maintain its equipment worldwide.

Containerised refuelling system for aviation fuels

Amatec’s containerised refuelling systems (CRS) for aviation fuels are fitted within ISO 20ft or 40ft containers, and include the following features:

• Single or double-wall storage tank in carbon steel internally epoxy coated or stainless-steel fitted with floating suction, overfill prevention and leak detection systems
• Electrical self priming centrifugal and / or PD pumps
• Positive displacement flow meter with air eliminator
• Filter water separator and / or monitor filter fitted with accessories
• Fuel sampling / testing devices
• Hose-reel with manual / automatic rewind, refuelling hose and underwing / overwing nozzle
• Explosion-proof electrical control panel
• Generator for electrical power supply of the system
• Stainless-steel piping

Above-ground storage tanks for handling jet fuels

Amatec’s above-ground storage tanks (ASTs) are available in various capacities up to 100,000l.

Depending on the required fuel depot capacity, the storage tanks can be adapted for in-parallel, standalone and / or skid-mounted configuration.

The AST main technical characteristics include:

• Single or double-wall type with inner shell in epoxy-coated carbon or stainless-steel
• Floating suction
• Overfill prevention valve and sensors
• Leak detection systems
• Low-point sump with drain line
• Inspection hatch
• Normal and emergency vent on request
• Stainless-steel piping
• Hot-dip galvanised handrail, stairwell and walkway

Skid-mounted loading and unloading systems

Amatec’s LUS loading-unloading system is a consolidated unit designed to transfer aviation fuel into holding and / or transport tanks.

The LUS’s general design includes separate lines for fuel unloading and loading, each fitted with a self-priming pump, filter water separator and accessories. The unit is configurable for aircraft refuelling.

The EExd control system can include hardwired relay logic in order to guarantee the correct valve opening sequence for each operation.

Optional features that can be added to the unit include test rig and in-line closed sampling circuits, relaxation chambers and refueller / bridger bonding verification units.

Aircraft refuelling cabinet

Amatec’s aircraft refuelling cabinets (ARCs) are specifically designed in accordance with the client’s requirements to safely dispense dry and clean aviation fuel into an aircraft. The system flow rate varies from 120l/min to 800l/min.

The ARCs are available in different configurations, including fixed installation, scissor elevator-mounted and offshore set-up.

Cart-mounted transfer-refuelling pumps

Amatec’s mobile aviation fuel transfer (AFT), fuel transfer pump (FTP) and portable refuelling pump (PRP) systems facilitate fuel handling operations where conventional systems are not available, for rapid deployment and/or temporary projects.

Available as trailer and cart-mounted models, they provide user-friendly, simple-to-operate, cost-effective machinery that ensures the highest standards of safety and reliability.
